Roofing Terms

AGGREGATE

• Rocks or granules used on the surface of roofs to protect them from UV damage and provide a finished appearance.

ALL WEATHER ELASTOMERIC MASTIC

• A versatile, asphalt-based roofing mastic designed for installation in damp or wet conditions.

ALLIGATORING

• Surface cracking resembles an alligator's hide, often due to the aging of asphalt.

APPLICATION RATE

• Measurement indicating how much material is applied per unit area, e.g., 1 gallon per 100 square feet.

AREA DIVIDER

• A structure used to alleviate stress in roofing systems on decks without expansion joints.

ASBESTOS

• A natural, heat-resistant mineral fiber once used in various building materials.

ASPHALT

• A black, sticky material used in making roofing materials due to its waterproof properties.

ASPHALTIC

• Pertaining to or treated with asphalt.

ASPHALT FELT

• Felt either saturated or coated with asphalt.

BACK NAILING

• Securing roofing felts with fasteners in addition to using adhesive, ensuring the fasteners aren't exposed.

BASE FLASHING

• Flashing that bridges the transition from the horizontal roof deck to a vertical surface.

BASE PLY

• The primary or bottom ply of roofing felt in a system.

BASE SHEET

• The initial ply, either coated or saturated, in a multi-layer roof membrane system.

BATTEN

• A strip of wood or metal placed on a roof's surface to elevate and secure roofing material.

BITUMEN

• A viscous material derived from petroleum or coal, often used in roofing as a waterproofing agent.

BITUMINOUS

• Related to or containing bitumen.

BITUMINOUS EMULSION

• Water or a water-soluble solution containing tiny droplets of bitumen.

BITUMINOUS GROUT

• Bitumen mixed with fine sand that becomes fluid when heated.

BLACKBERRY

• A minor blister in the flood coat of a gravel-topped roof.

BLIND NAILING

• Nailing roofing material in a way that hides the nails from external elements once the system is in place.

BLISTER / BLITSTERING

• The formation of blisters in roofing materials due to moisture or air trapped inside.

BLOCKING

• Support structures, typically made of wood, integrated into roofing systems to provide secure attachment points.

BOND

• The forces of adhesion holding roofing components together.

BROOMING

• Pressing roofing material into adhesive using a broom to ensure good contact and bonding.

BUILT-UP ROOF MEMBRANE (BUR)

• A type of roof where multiple layers of asphalt and reinforcing fabrics are used.

CANT STRIP

• A sloping or beveled strip easing the transition between horizontal and vertical surfaces on a roof.

CAP FLASHING

• Metallic covering atop walls or projections, protecting them from moisture penetration.

CAPILLARITY/CAPILLARY ACTION

• The action causing water to be absorbed into a material, which can sometimes lead to de-lamination.

CAP SHEET

• A top layer in a roofing system, typically granule-surfaced.

CAULKING

• Flexible material used to seal gaps or cracks in roofing structures.

COAL TAR

• Dark, viscous residue obtained from the distillation of coal.

COAL-TAR PITCH

• A variant of coal tar utilized for waterproofing in low slope roofing.

COAL-TAR FELTS

• Roofing felts saturated with refined coal tar.

COATED SHEET FELT

• Roofing felt with an additional coating of asphalt for enhanced protection.

COATING

• A layer (often liquid) applied to roofing to protect it from the elements.

COLD PROCESS ROOFING

• Roofing method using asphalt or other binders without the need for heating.

CONDENSATION

• The process where water vapor in the air turns into liquid upon contacting a cold surface.

COPING

• Protective capping on external walls, angled to deflect water.

COUNTERFLASHING

• Material used to cover and protect a particular type of flashing, often at the roof's edge.

COURSE

• A single layer of materials in a multi-layer roofing system.

COVERAGE

• The area uniformly covered by a given amount of roofing material.

CRACK

• A break or split in roofing materials, often due to stress or movement.

CRICKET

• A raised section of the roof to divert water around chimneys or other structures.

CUTBACK

• Bitumen thinned with solvents, used in cold-process roofing and as primers or coatings.

CUTOFF

• A temporary waterproofing detail preventing water movement, removed after re-roofing.

DAMPPROOFING

• Treatment to prevent moisture penetration but not necessarily under pressure.

DEAD LEVEL

• A perfectly level surface without any slope.

DEAD-LEVEL ASPHALT

• Asphalt with a low softening point, typically used on flat roofs.

DEAD LOADS

• Fixed, non-movable loads on rooftops, e.g., HVAC systems or the roof deck itself.

DECKING / DECK

• The structure upon which roofing and insulation systems are installed.

DELAMINATION

• The separation of layers within roofing systems or within the material itself.

DEW POINT

• The temperature at which air becomes saturated, causing water vapor to condense.

DORMER

• A structure projecting from a sloping roof, usually housing a window.

DOUBLE-POUR

• A method of applying two successive layers of aggregate and bitumen to a roof.

DRAIN

• A fixture allowing water runoff from a roof.

DRIP EDGE

• A metal strip at the edge of the roof to guide water off.

DROP BACK

• A decrease in the softening point of bitumen when heated without air.

EAVE

• The lower border of the roof that overhangs the wall.

EDGE SHEETS

• Strips of felt narrower than a full sheet, utilized to initiate the felt shingling pattern at the roof perimeter.

EDGE STRIPPING

• Narrow felt strips applied to seal the joint between flashing and the primary roofing system.

EDGE VENTING

• Regularly spaced and protected openings along the roof edge to alleviate moisture vapor pressure.

ELASTOMER

• A material capable of returning to its original form after being stressed.

ELASTOMERIC

• Resembling rubber in flexibility; can stretch when pulled and revert to its original shape upon release.

EMBEDMENT

• Pressing a material into an adhesive for secure placement.

EMERGENCY REPAIR

• A temporary fix done under challenging conditions to prevent water penetration, usually replaced under better conditions.

EMULSION

• A dispersion of an organic substance and water, typically made stable using a chemical or clay agent.

ENVELOPE

• A seal around the edges of the roofing membrane to prevent asphalt leakage.

EPDM ROOFING

• Ethylene Propylene Diene Monomer, a type of synthetic rubber roofing material.

EQUIVISCOUS TEMPERATURE (EVT)

• Recommended asphalt application temperature, typically within a range of plus or minus 25 degrees F.

EXPANSION JOINT

• A gap in roof decks or walls to facilitate movement.

EXPOSURE

1. The portion of roofing material left exposed to the elements after installation.
2. The duration during which roofing materials are exposed to environmental conditions.

FABRIC

• A woven material made from organic or inorganic fibers.

FACTORY MUTUAL (FM)

• An entity that rates materials based on their fire and wind properties for insurance purposes.

FACTORY SQUARE

• Equivalent to 108 square feet of roofing material.

FASCIA

• A decorative board extending down from the roof edge either at the eave or at the rake.

FELT

• A flexible sheet created by binding fibers using mechanical action, heat, and moisture.

FELT LAYER

• Equipment used to apply bitumen and lay down roofing felts.

FIBERGLASS FELT

• Also known as "Glass Felt" - fibers of glass bonded into a sheet, ideal for bituminous roofing material manufacturing.

FINE MINERAL SURFACING

• Inorganic material on roofing surfaces, primarily passing a No. 35 sieve test.

FISHMOUTH

• A semi-circular or conical opening caused by edge warping in roofing materials.

FLASHING

• Materials used to prevent water intrusion at any junction or penetration of a roof system.

FLASHING CEMENT

• A blend of cutback bitumen and mineral stabilizers, like asbestos or other fibers.

FLUID APPLIED

• Liquid elastomeric material applied and left to dry, forming a continuous, typically unreinforced, membrane.

GABLE

• The triangular part of the roof at the end of a pitched roof.

GLASS MAT

• A lightweight sheet composed of intertwined glass fibers.

GLAZE COAT

• A protective layer of thin asphalt on a smooth surface roof or on inner layers during construction delays.

GRAVEL

• Naturally eroded coarse aggregate, larger than sand.

GRAVEL STOP

• A flange, usually metal, at the roof edge to prevent loose aggregate from falling off.

GUTTER

• A channel at the edge of the roof to collect and divert rainwater.

HEADLAP

• The distance (measured perpendicular from the eave) from the top edge of a shingle or felt to the nearest exposed layer.

HIP

• The external angle formed by the intersection of two sloping roof planes.

HOT SHEET

• Felt applied using hot bitumen.

INCLINE

• Roof slope described either as a percentage or in vertical units per horizontal run (e.g., 4" in 12').

INORGANIC

• Composed of non-plant or animal materials.

INSULATION

• Material slowing heat or sound transmission.

JOIST

• Horizontal beams that support the roofing structure.

LAP SEAM

• Where two pieces of roofing material overlap.

LIVE LOAD

• Transient loads on a roof, like equipment or weather elements (snow, rain).

MASTIC

• A trowel-able combination of asphalt, volatile solvents, and mineral fillers utilized in the cold coating application for flashing and detail sealing.

MEMBRANE

• A consistent, flexible, or semi-flexible roofing covering that acts as the water barrier in a roofing system. This term can also refer to an open weave fabric reinforcing waterproofing agents like mastic.

MESH

• This refers either to a metallic screen used to reinforce stucco and concrete or an open weave fabric reinforcing waterproofing agents like mastic.

MINERAL FIBER FELT

• Felt predominantly composed of mineral wool.

MINERAL GRANULES

• Refer to "Fine Mineral Surfacing".

MINERAL STABILIZER

• A fine, water-insoluble inorganic material blended with solid or semi-solid bituminous materials.

MINERAL SURFACED ROOFING

• Roofing materials with a top ply characterized by a granule surface sheet.

MODIFIED BITUMEN

• A sheet made of copolymer-modified bitumen, typically reinforced and surfaced.

MOLE RUN

• A meandering ridge on a roof membrane not related to insulation or deck joints.

MOP AND FLOP

• A method where a material is coated with adhesive before being placed on its installation point.

MOPPING

• The act of applying hot bitumen via a mop or mechanical tool.

NAIL POP

• A condition where the nail is pushed up above the surface of the roofing material.

NINETEEN-INCH SELVAGE

• Roll roofing material with a granulated surface and a 19-inch smooth section for overlapping, resulting in a two-ply system.

NINETY-POUND

• Granule-surfaced roll roofing material weighing approximately 90 pounds per 100 square feet.

NOT TO EXCEED (NTE)

• A preset billing limit agreed upon with a client before commencing work.

NRCA

• Acronym for the National Roofing Contractors Association.

ORGANIC

• Materials originating from plant or animal sources.

OVERLAY

• Installing a new layer of roofing over the existing one.

PARAPET WALL

• A wall section that rises entirely above the roof.

PARGE COAT

• A cementitious coating applied to walls to enhance resistance to hydrostatic pressure.

PENETRATION

• Any object passing through the roof.

PERLITE

• Aggregate used in lightweight concretes and insulation boards.

PERMANENT REPAIR

• A repair designed to match the existing system and expected to outlast nearby roofing materials.

PHASED APPLICATION

• The installation of a roofing system over multiple separate time intervals.

PICTURE FRAMING

• Patterned material outlining the edges of a building or deck joints.

PITCH

• Refer to "Coal Tar".

PITCH POCKET

• A metal collar, with flanges, placed around penetrations and filled with substances like bitumen or mastic.

PLASTIC CEMENT

• Refer to "Flashing Cement".

PLASTOMERIC

• A moldable, extrudable, or castable polymer resembling plastic.

PLY

• A layer of felt within a built-up roof membrane structure.

POLYESTER

• An inorganic polymer, convertible into fibers, used for reinforcing felts and fabrics.

PONDING

• A roof section that allows water to stand for longer than 48 hours.

POSITIVE DRAINAGE

• Drainage conditions ensuring complete water removal within 48 hours post-rainfall.

PRIMER

• A liquid bitumen applied to surfaces to enhance the adhesion of subsequent bituminous materials.

QUOTED PRICE

• A predetermined price provided to a client for specific tasks.

RAFTER

• The supporting framing to which a roof deck is attached.

RAKE

• The sloping edge of a roof situated at the first and last rafter.

RE-COVERING

• Covering an existing roofing system with a new roof system.

RE-ENTRANT CORNER

• An internal corner of a surface inducing stress concentrations in roofing or waterproofing systems.

REGLET

• A groove in a wall or adjacent surface near the roof used for counter-flashing attachment.

REINFORCED MEMBRANE

• A membrane fortified with materials like felts, mats, or fabrics.

REPAIR

• Actions and materials to address and rectify a defect in a roofing system.

RESTORE

• Efforts and materials used to rejuvenate a neglected roofing system to its optimal state.

RIDGE

• The top edge of two intersecting sloping roof surfaces.

RIEI

• Acronym for the Roofing Industry Educational Institute.

ROOF CEMENT

• Refer to "Flashing Cement".

ROOF DIVIDER

• A structural detail limiting the extent of a continuous roof membrane by dividing it into smaller sections.

ROOF MASTIC

• Product used to seal a roof so water cannot penetrate.

ROOF VENT

• A structure for ventilation that protrudes from the roof.

SCUPPER

• An opening in a wall or parapet for the drainage of water from a roof.

SEAM

• The junction of two materials, either by adhesive, heat welding, or other means.

SHINGLE

• A small unit of material laid in overlapping rows to cover the roof or sides of a building.

SLIPPAGE

• Lateral displacement of roofing system components.

SLOPE

• The angle of incline of a roof expressed as a percentage or as a ratio of rise to run.

SMOOTH-SURFACED ROOFING

• Roofing installed with a top layer devoid of aggregates or ballasts.

SOFTENING POINT

• The temperature at which bitumen softens and starts flowing.

SOLID MOPPING

• An unbroken mopping of bitumen.

SPECIAL STEEP ASPHALT

• Refer to "Steep Asphalt".

SOFFIT

• The underside of a roof overhang or eave.

SPLIT

• A membrane rupture caused by tensile forces.

SPLIT SHEET

• Refer to "Nineteen-Inch Salvage".

SUBSTRATE

• The surface upon which the roofing or waterproofing system is applied.

TAR

• A thick, black, sticky material used in roofing.

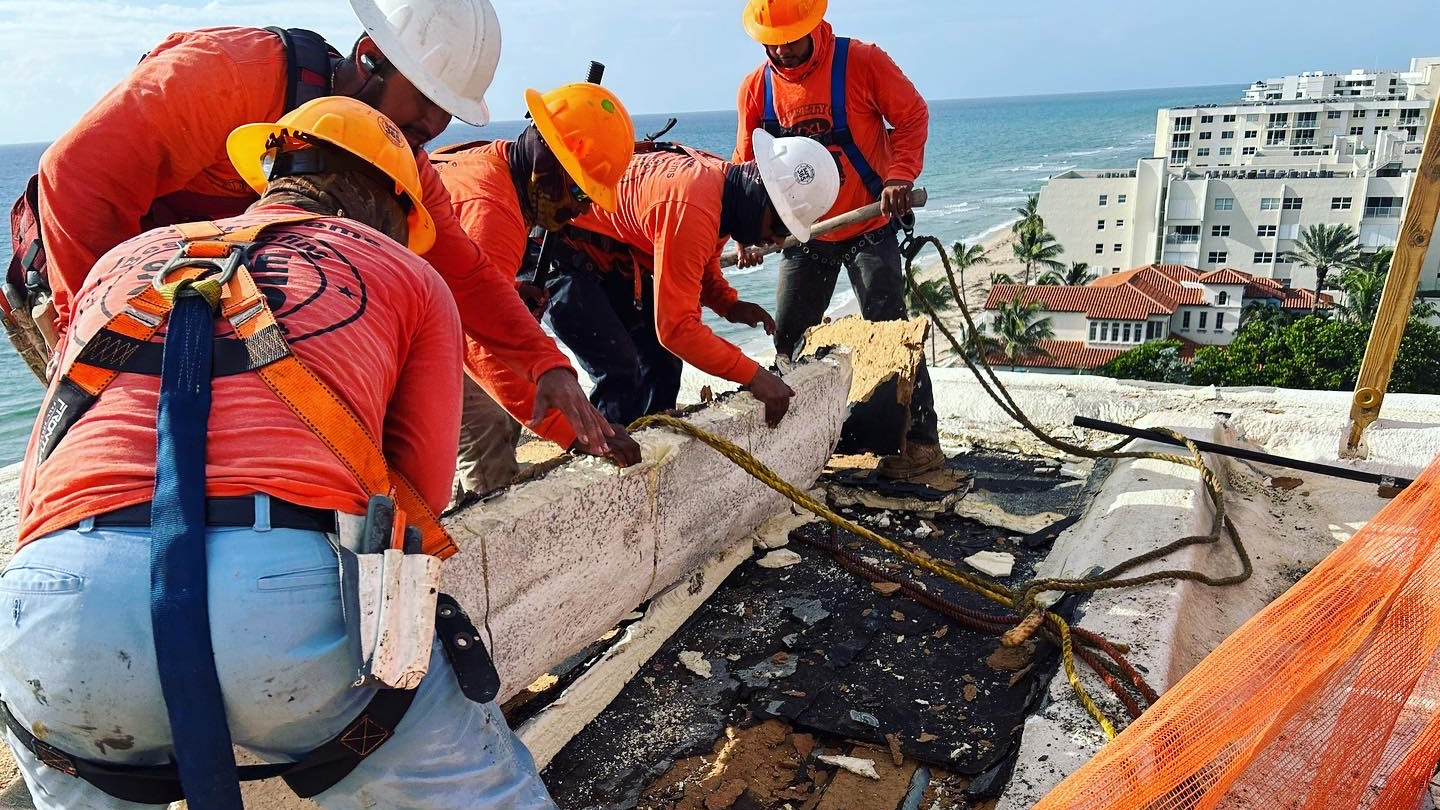

TEAR-OFF

• The process of removing all or parts of a roofing system, often down to the decking.

THERMAL IMAGING SERVICE

• A service detecting temperature variations on a rooftop, useful for leak detection and energy audits.

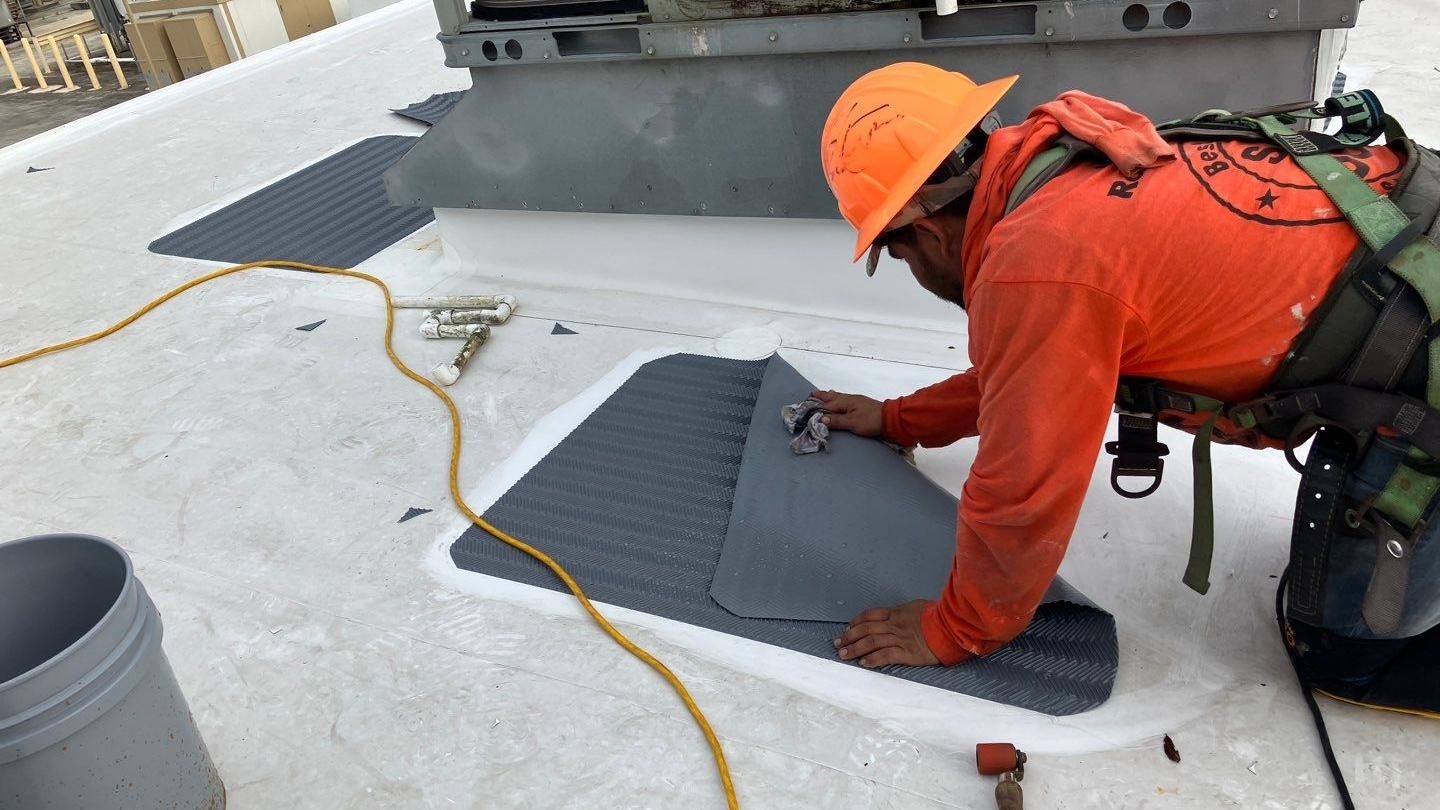

THERMOPLASTIC MEMBRANE

• A membrane crafted using extreme heat, with notably strong seams. Examples include TPO and PVC.

TPO ROOFING

• Thermoplastic polyolefin, single-ply membrane used for flat roofing.

TRUSS

• An assembly of beams or other elements forming the structure for a roof.

UNDERLAYMENT

• A layer between the roof deck and the roofing material, providing additional protection.

VALLEY

• The internal angle formed by the intersection of two sloping roof planes.

VAPOR RETARDER

• A material designed to restrict the passage of water vapor through a roof system.

WATERTIGHT

• The quality of a roof to prevent the passage of water under conditions of hydrostatic pressure.
